Description
Free shipping within Canada
◆ H.264 Compression & Virus free Linux O/S
◆ Support mobile phone live view & Email Alarm
◆ Real hexaplex operation ---simultaneous record, playback,mobile phone live view , backup, control, & remote access
◆ Support 4-channel full D1 Real-time record at the same time
◆ Support 4-channel full D1 playback at the same time
◆ User-friendly interface: 16 bit true color, semi-transparent graphical user interface
◆ Support D1,HD1,CIF for recording quality
◆ Fluent internet transmission
◆ Support USB DVD backup
◆ Suitable for fields as supermarkets, chain stores, community security or villa
◆ Hi-speed backup/upgrade/record via USB2.0

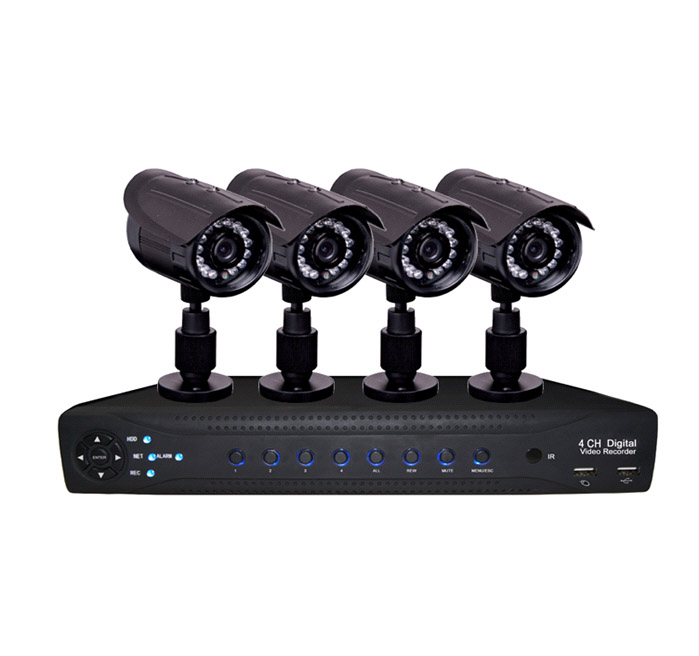

◆ With 4 CCD cameras
Specifications
DVR SPECIFICATIONS
Audio Input: 4channels impedance600Ω RCA
Video Output: 1channel 1.0Vp-p，75ΩBNC
Audio Output: 1channel impedance600Ω RCA
Video Display: D1 pixels, 1/4 display
Image Compression: H.264 Audio Compression
ADPCM Recording Resolution D1, HD1, CIF Alarm In 4 CH Alarm Out 1 CH
Video Playback Support 4 channels D1 playback at the same time
HDD 1 SATA,support up to 1 T
USB Interface 1Piece USB2.0 for backup ; 1Piece USB1.1 for mouse
VGA Interface 1Piece,support resolution :800*600、1024*768、1280*1024、1366*768、1440*900
Motion Detection Zone setup:PAL13*10(130) ,NTSC13*8(104)
Serial Interface RS-485 Network Interface RJ-45,10M/100M
Power Source DC 12V/5A
Mobile Monitoring Support GPRS/CDMA/EDGE/3G
Operating Temperature -20~50℃

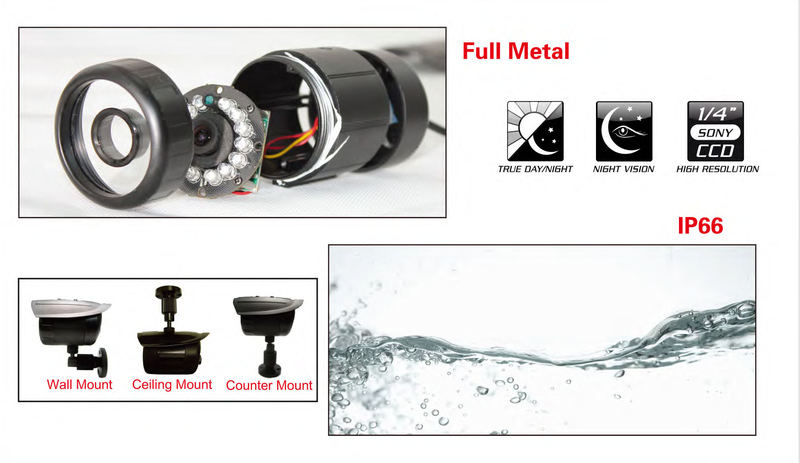

CAMERA SPECIFICATIONS
Image Sensor 1/4″SONY Super HAD CCD
Effective Pixels PAL:512(H)×582(V) NTSC:512(H)×492(V)
Signal System PAL/NTSC Horizontal Resolution 420TV Line
Shutter Speed 1/50（1/60）——1/100,000（s）
White Balance Auto Tracking White Balance
S/N Ratio ≧ 48db
Video Output 1.0Vp-p,75Ω（BNC）
Water Resistance IP65
Power Supply DC12V Power
Consumption 3W( when IR Leds ON )
Weight 260g
