Specifications

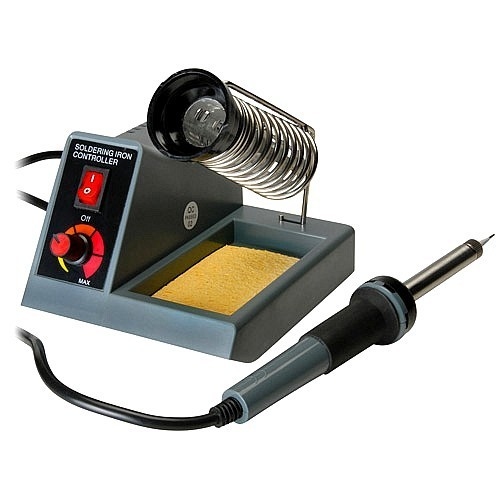

Variable Temperature Soldering Station
Many different soldering tasks are accomplished easily by using the adjustable 5 to 40 watt (150°C to 450°C temperature) adjustment. The lightweight pencil iron features a fatigue-reducing rubber grip, and a Bakelite-ringed holder keeps the iron at the ready. A field replaceable, precision ground, iron-plated solid copper tip provides maximum heat transfer, minimizing cold solder joints. Includes 1.5mm conical soldering tip and cleaning sponge. Additional tips available for a variety of soldering applications.
Tip Replacement and Dressing:
Tip replacement or cleaning should be done only when the iron is at room temperature. The tip can be changed or replaced simply by unscrewing the knurled nut from the barrel assembly. The station must be switched off and allowed to cool before and during this operation, as damage may result if the system is left on without the tip installed. After removing the tip, blow out any oxide dust that may have formed in the tip retaining area of the barrel. Be careful to avoid getting debris in your eyes. Replace the tip and screw the retaining knurled nut onto the barrel assembly; tighten only finger-tight. Pliers should only be used to tighten the nut if it becomes loose when the iron is hot to avoid burning your fingers. Care should be taken not to over tighten as this can damage the element.
General Cleaning:
The outer case of the iron or station may be cleaned with a damp cloth using a small amount of liquid detergent. Never submerse the unit in liquid or allow any liquid to enter the case of the station. Never use solvent to clean the case.
