Description
Free shipping within Canada
◆ H.264 Compression & Virus free Linux O/S
◆ Support mobile phone live view & Email Alarm
◆ Real hexaplex operation ---simultaneous record, playback,mobile phone live view , backup, control, & remote access
◆ Support 4-channel full D1 Real-time record at the same time
◆ Support 4-channel full D1 playback at the same time
◆ User-friendly interface: 16 bit true color, semi-transparent graphical user interface
◆ Support D1,HD1,CIF for recording quality
◆ Fluent internet transmission
◆ Support USB DVD backup
◆ Suitable for fields as supermarkets, chain stores, community security or villa
◆ Hi-speed backup/upgrade/record via USB2.0

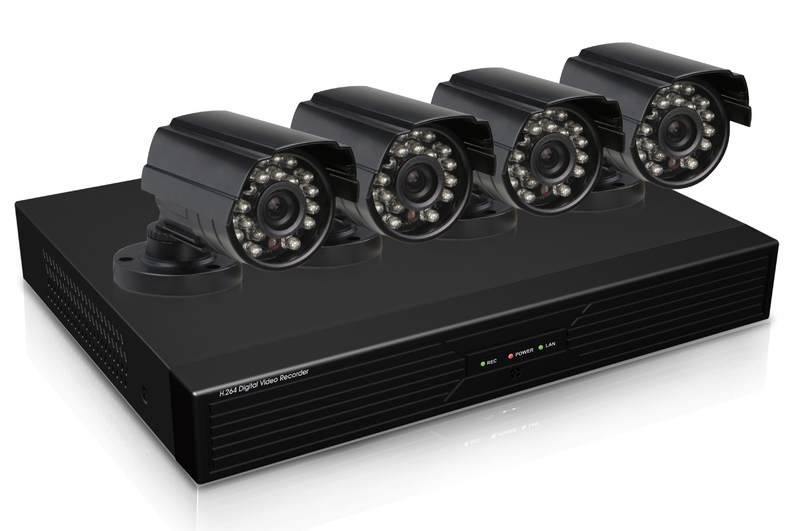

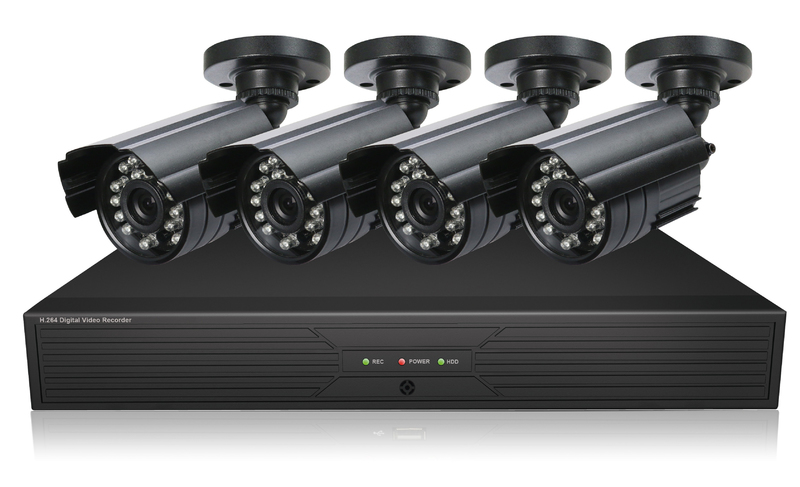

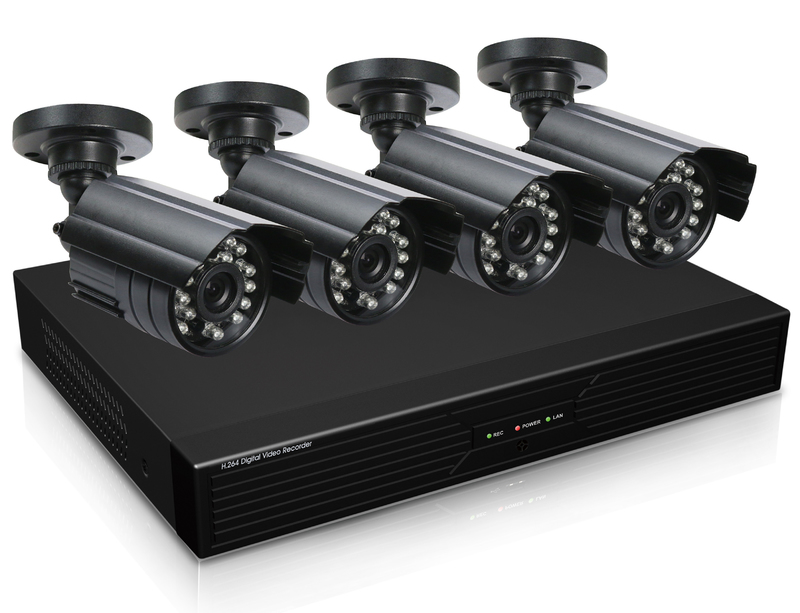

◆ With 4 CMOS cameras
◆ Harddrive is not included.
Warranty:
We offer one year warranty start from the purchase date against any workmanship, material defects. We are not responsible for products which have been subject to misuse, alteration, accident. buyer is responsible for all shipping expenses.
Specifications
DVR SPECIFICATIONS
Audio Input: 4channels impedance600Ω RCA
Video Output: 1channel 1.0Vp-p，75ΩBNC
Audio Output: 1channel impedance600Ω RCA
Video Display: D1 pixels, 1/4 display
Image Compression: H.264 Audio Compression
ADPCM Recording Resolution D1, HD1, CIF Alarm In 4 CH Alarm Out 1 CH
Video Playback Support 4 channels D1 playback at the same time
HDD 1 SATA,support up to 1 T
USB Interface 1Piece USB2.0 for backup ; 1Piece USB1.1 for mouse
VGA Interface 1Piece,support resolution :800*600、1024*768、1280*1024、1366*768、1440*900
Motion Detection Zone setup:PAL13*10(130) ,NTSC13*8(104)
Serial Interface RS-485 Network Interface RJ-45,10M/100M
Power Source DC 12V/5A
Mobile Monitoring Support GPRS/CDMA/EDGE/3G
Operating Temperature -20~50℃
CAMERA SPECIFICATIONS
Image Sensor 1/4″ CMOS
Effective Pixels NTSC:512(H)×492(V)
Signal System NTSC Horizontal Resolution 650TV Line
Shutter Speed 1/50（1/60）——1/100,000（s）
White Balance Auto Tracking White Balance
S/N Ratio ≧ 48db
Video Output 1.0Vp-p,75Ω（BNC）
Water Resistance IP65
Power Supply DC12V Power
Consumption 3W( when IR Leds ON )
Weight 260g
