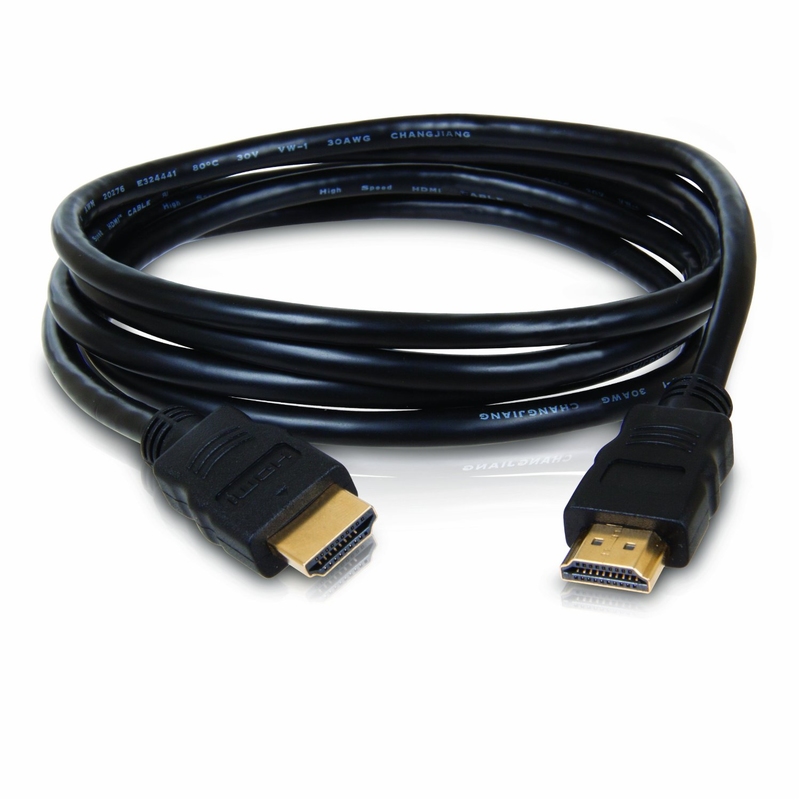

HDMI Cable UL CL3/CSA FT4 IN-WALL RATED, 6FT, VER.1.4
Be the First to Write a Review

Need some Answers? Click Here to Ask A Question

Product ID: 10-020

Availability: In Stock

Quantity Our Price
1$5.99
2-9 $5.69
10-49 $5.49
50+  $4.99
Quantity:



Description

Free Shipping



A High Speed HDMI® Cable from DIGIPARTS is the only way to ensure that you have the ability to pass ALL signals authorized in the latest HDMI® feature specification.

This cable supports the following HDMI® features:
  • 1080p Resolution - The High Speed HDMI® Cable has sufficient bandwidth to transfer 1080p video signals between 1080p rated source and sink (display) devices.
  • Audio Return Channel - Normally, your HDMI® cable carries audio information along with the video from a source device (e.g. blu-ray player) to the sink device (display/television). Often times this goes through an AV receiver to drive a home theater audio system. The Audio Return Channel is primarily used to send the audio signal generated by the television when its internal tuner is used, back to the AV receiver, so that you can use your home theater audio system when watching television signals.
  • 3D - 3D is the latest rage for both home theater and gaming. A High Speed HDMI® Cable is capable of handling the high bandwidth requirements of 3D signals.
  • 4K - The 4K resolution is 3840 x 2160 pixels @ 24 Hz, which is four times that of a 1080p display and the same resolution used by state-of-the-art Digital Cinema systems. A High Speed HDMI® Cable is capable of handling the high bandwidth required for 4K support.
  • Deep Color - The Deep Color feature provides a minimum of 8-bits per color element (24-bits total), providing for a total of over 16 million color variations. Other versions of Deep Color allow for up to 16-bits per element, for a total of 48-bits and over 281 trillion color variations, which really makes your video images come to life!
  • x.v.Color™ - x.v.Color™ is a promotion name given to the products that have the capability to realize a wide color space based on the xvYCC specifications and is a trademark of Sony Corporation. Currently, only AVCHD and Playstation 3 devices support x.v.Color™.
  • High Definition Audio - HDMI® supports a full range of high definition audio types, including SA-CD, DVD-Audio, DTS-HD Master Audio™, and Dolby TrueHD™.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
x.v.Color™ is a trademark of Sony Corporation.
AVCHD and AVCHD logo are trademarks of Panasonic Corporation and Sony Corporation.
PlayStation and PlayStation 3 are trademarks or registered trademarks of Sony Corporation.
DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc.
Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

Specifications



6FT 30AWG UL CL3 CSA FT4 IN-WALL Rated High Speed HDMI® Cable - Black
Features and Specifications
Connector Type HDMI® male to HDMI® male
Connector Finish Gold
Length 25 ft
HDMI® Connector Head Size 20 x 11 x 37 mm
HDMI® Connector Diameter 7.3 mm
Gauge 28 AWG
Number of Conductors 19
Conductor Plating Tin
Shielding Level Triple
Shielding Type EMI
Ferrite Cores No
Net Jacket No
Built-in Equalizer No

Supported Resolutions 480i to 4k
Bandwidth up to 340 MHz per channel (1.02 GHz total)
Data Throughput up to 3.4 Gbps per channel (10.2 Gbps total)
Deep Color 10-bit, 12-bit, and 3x16-bit (48-bit RGB or YCbCr), X.V.Color™
Supports DVD Audio Yes
Supports SACD Yes
Supports Dolby TrueHD™ & DTS-HD Master Audio™ Yes

HDMI® Certified Yes
Category 2 Certified Yes
HDCP Compliant Yes
CEC Compliant Yes
ROHS Compliant Yes

UL File # E329703
UL Style # CL3
CL3 (In-Wall) Yes
CSA FT4 Yes
Voltage Rating 30V
Temperature Rating 80° C

Note: Due to continual efforts to make improvements to our products, all information is subject to change without notice. Items you receive may be different than described.


HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

x.v.Color™ is a trademark of Sony Corporation.

DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc.

Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
