Description

This USB 3.0 Gigabit Ethernet adapter is a cost effective solution that converts a USB port into a 10/100/1000Base-T Ethernet port. It enables low cost and affordable Gigabit Ethernet network connection to desktop, notebook PC, and embedded system using popular USB ports. No need to purchase an expensive Gigabit network interface card and to spare a PCI or CardBus slot, just using your existing USB ports and you can upgrade your network connection speed. It allows you to build a stable network environment connected to a wired LAN connection to the USB port on thin laptops without RJ45 port. The adapter is backward compatible with USB 2.0 / 1.1 standards.

Features:

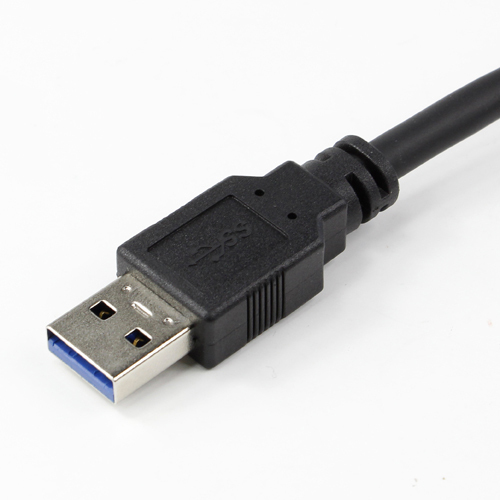

USB 3.0 male A to RJ45 female adapter supporting Gigabit Ethernet at USB 3.0 speeds with full bandwidth.

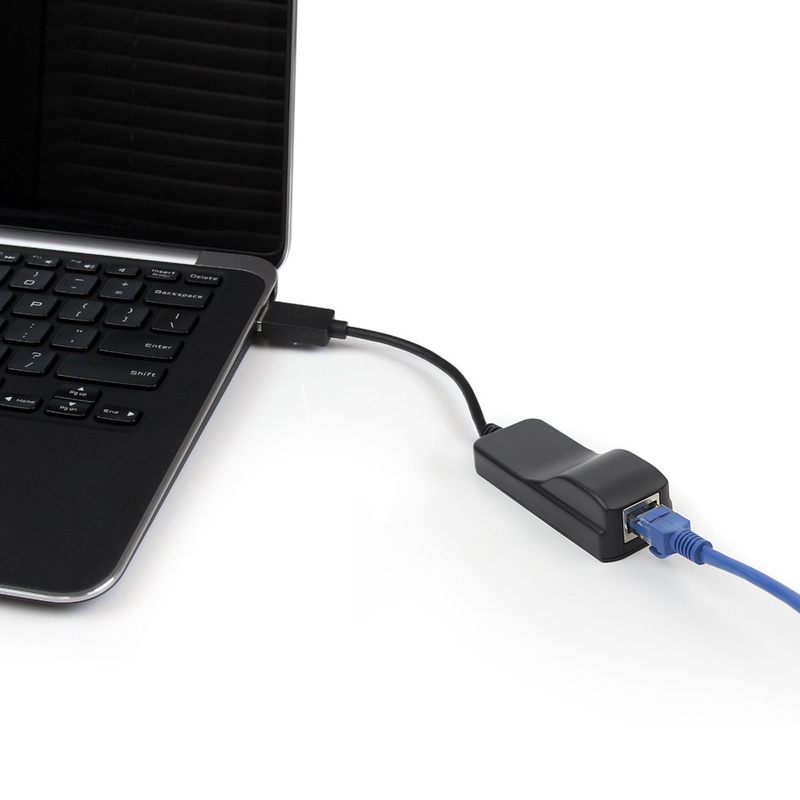

Compatible with thin laptops without RJ45 port such as MacBook Air, Ultrabooks, and Netbooks.

























USB-Powered, no additional power adapters required.

























Lightweight design making it the perfect solution for applications that require portability.

























Backwards compatible with USB 2.0 / 1.1 standards.











Specifications



Specifications:













Integrates on-chip USB 3.0 PHY and controller compliant to USB Spec 3.0, 2.0 and 1.1.

























Supports IEEE 802.3az (Energy Efficient Ethernet).

























IEEE 802.3, 802.3u, and 802.3ab



























compatiblev

























Integrates 10/100/1000Mbps Gigabit Ethernet MAC/PHY.

























Supports all USB 3.0 power saving modes (U0, U1, U2, and U3).

























Supports USB Super/High/Full Speed modes with Bus-power or Self-power device auto-detect capability .

























High performance packet transfer rate over USB bus using proprietary burst transfer mechanism (US Patent Approval).

























Chipset is AX88179

You can download latest driver at:

http://www.asix.com.tw/products.php?op=pItemdetail&PItemID=131;71;112

System Requirements:

























Pentium III 800MHz or faster PC with USB port.

























256 MB RAM or more.

























Windows® 98SE/ME/2000/XP/Vista.

























Linux 2.4 Kernal or higher.

























MAC OS 10.3 or higher.

Package Content:

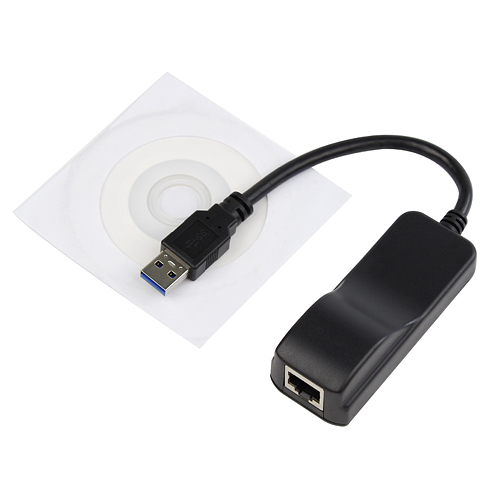

1 x USB3.0 Gigabit Ethernet Adapter.

























1 x Driver CD.
